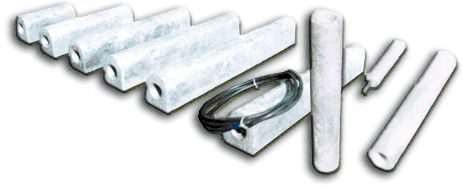

ESEN METAL - HIGH POTENTIAL MAGNESIUM ANODES

High Potantial Magnesium Anodes are usually used againist corrosion in Cathodic Protection of metal constructions that needs high protection because of conditions like resistivity under 5000 Ohm.cm, under ground, and wet.

• Naturel Gasses Pipe Lines
• Drinking Water Pipe Lines
• Petroleum Pipe Lines
• Liquid Fuel, Lpg ve WaterTanks

Anodes are casted from high purity magnesium ingots with care. They are analysed chemically and electrochemically according to the ASTMG.

CHEMICALL COMPOSITION

ELEMENT	(%)
ELEMENT	ASTM B843	TS 9234
Al	0.01 % max	0.05 % max
Zn	0.03 % max	0.03 % max
Mn	0.5 – 1.3	0.5 – 1.5
Si	0.05 % max	0.05 % max
Cu	0.02 % max	0.02 % max
Fe	0.03 % max	0.03 % max
Ni	0.001 % max	0.002 % max
Other	0.05 % max	-
Magnesium	Remainder	Remainder

ELECTROCHEMICALL ATTRIBUTES

Theoretical Capacity	2200 A.hour/kg, 3.94 kg/A.year
Efficiency	50 % Min
Actual Capacity	1100 A.hour/kg, 7.88 kg/A.year
Electrode Potential (Cu/CuSO4)	1700 – 1750 mV
Potantial of Steal Opposite Circuit	850 – 900 mV
Density	1.78 g/cm³

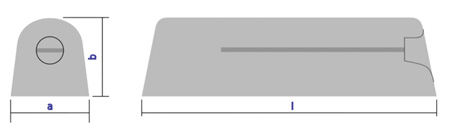

ANODE DIMENSIONS

ANODE TYPE	ANODE WEIGHT		ANODE SIZES
	BARE	PACKAGED	BARE	PACKAGED
	lb kg	lb kg	A x B x L	R x L
MC20-HP	2 0.906	12 5.5	Ø50 x 280	120 x 380
MD30-HP	3 1.359	15 6.8	90 x 90 x 125	160 x 225
MD35-HP	3.5 1.586	16 7.2	90 x 90 x 145	160 x 245
MD50-HP	5 2.265	20 9	90 x 90 x 205	160 x 305
MD65-HP	6.5 2.945	22 10	90 x 90 x 265	160 x 365
MD90-HP	9 4.077	28 13	90 x 90 x 355	160 x 455
MD100-HP	10 4.530	30 14	90 X 90 X 400	160 X 500
MD120-HP	12 5.436	37 17	90 x 90 x 485	160 x 585
MD140-HP	14 6.342	42 19	90 x 90 x 565	160 x 665
MD170-HP	17 7.701	48 22	90 x 90 x 670	160 x 770
MD220-HP	22 9.966	53 24	105 x 105 x 630	180 x 730
MD320-HP	32 14.496	70 32	135 x 140 x 525	200 x 650

Please contact us for your requirements except the standard measures in the diagram.

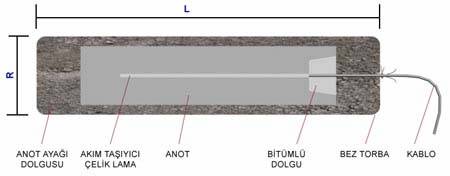

At Esen Metal, we attach a copper lead wire (size, length and insulation type as specified) to the magnesium anode and seal the connection interface. If required, the anode will be packaged in a cloth bag with a prepared backfill mixture of 75% gypsum, 20% bentonite and 5% sodium sulfate. The backfill mixture works to maintain moisture around the anode and lowers the anode to earth resistance. The packaged anodes are shipped on pallets in plastic bags that must be removed prior to installation.
