  ESEN METAL - ZINC ANODES
Zinc Anodes are used in Cathodic Protection of iron and steel constructions that are in salty water with resistivity under 2000 Ohm.cm, fresh water and soil.

Generally the usage field is as follows:

• Ship, boat, yacht and tugs
• Ships ballast tanks
• Ports and stakes
• Pipe lines
• Heat converters

Zin Anodess, produced by ESEN METAL, are casted from zinc ingots with 99,99% purity according to the T1 and T2 standards. In conditions like sea water and salty mud T1 alloy is used as T2 alloy is used in conditions like fresh water and soil. zinc anodes 's which are going to be used in soil ground, are packed with %75 gypsum, 20% bentonite and 5% sodium sulfate mixture in cloth sacks in order to decrease resistivity and make anode work uniformly.

CHEMICALL COMPOSITION

ELEMENT
MIL-SPEC. A-18001 J
ASTM-B418-95a
TYPE I
ASTM-B418-95a
TYPE II
Al
0.1 - 0.5
0.005 % max
Cd
0.025 - 0.07
0.003 % max
Fe
0.005 % max
0.0014 % max
Pb
0.006 % max
0.003 % max
Cu
0.005 % max
0.002 % max
Zinc
Remainder
Remainder


ELECTROCHEMICALL ATTRIBUTES

E. Properties
MIL-SPEC. A-18001 J
ASTM-B418-95a
TYPE I
ASTM-B418-95a
TYPE II
Theoretical Current Capacity
820 A.hour/kg 10.66 kg/A.year
820 A.saat/kg 10.66 kg/A.year
Efficiency
95 %
90 %
Actual Current Capacity
780 A.hour/kg
11.22 kg/A.year
740 A.hour/kg
11.84 kg/A.year
Electrode Potential (Cu/CuSO4)
1100 mV
1100 mV
Potantial of Steel Opposite Circuit
250 mV
250 mV
Density
7.13 g/cm³
7.14 g/cm³


ANODE DIMENSIONS

ANODE TYPE
ANODE SIZES ( mm )
ANODE WEIGHT (kg)
a
b
c
d
e
f
GROSS
NET
ZN
HULL
ZINC HULL ANODES
ZH-17
200
150
80
30
20
3
1.7
1.6

Z-30
290
230
80
30
25
5
3.0
2.7
Z-34
300
240
80
34
25
5
3.4
3.1
Z-40
315
255
80
40
25
5
4.0
3.7
Z-50
410
350
80
34
25
5
5.0
4.6
Z-64
505
445
80
34
25
5
6.4
5.9
Z-76
475
415
95
35
25
5
7.6
7.1
Z-100
480
420
120
35
30
6
10.0
9.3
Z-107
485
425
120
38
30
6
10.7
10.0
Z-124
490
430
120
45
30
6
12.4
11.7
Z-146
635
535
120
43
30
6
14.6
13.7
Z-170
710
610
120
40
40
6
17.0
15.7
Z-200
720
620
120
48
40
6
20.0
18.7
Z-226
860
760
120
43
40
6
22.6
21.0
Z-250
870
770
120
48
40
6
25.0
23.4
ZY-54
360
300
130
30
30
5
5.4
5.0
ZY-75
360
300
130
40
30
5
7.5
7.1

ZD-23
245
195
70
30
25
5
2.3
2.1
ZD-55
360
300
80
38
25
5
5.5
5.1
ZD-60
360
300
80
42
25
5
6.0
5.6
ZD-75
445
385
80
38
30
5
7.5
7.0
ZD-88
450
390
85
45
30
5
8.8
8.3
ZD-118
440
380
125
43
40
6
11.8
11.0
ZD-130
440
380
125
48
40
6
13.0
12.2
ZD-140
880
780
80
38
30
6
14.0
12.8
ZD-165
885
785
85
45
30
6
16.5
15.3

ZT-100
255
355
165
35
30
5
10
9.4
ZC-100
355
165
160
35
15
6
10
9.6
ZC-60
300
80
50
60
20
-
6.0
5.8
ZN
BALLAST
ZINC BALLAST TANK ANODES

ZTB-95
1485
935
40
40
8
8
9.5
8.5
ZTB-220
1750
1200
50
50
12
12
22.0
20.2
ZTR-95
1235
935
40
40
8
8
9.5
8.7
ZTR-220
1500
1200
50
50
12
12
22.0
21.0

ZTL-95
935
560
40
40
30
5
9.5
8.7
ZTL-220
1200
560
50
50
40
5
22.0
20.2
ZN
CONDEN.
ZINC CONDENSER ANODES
ZK-6
60
25
-
-
-
-
0.5
-
ZK-10
100
25
-
-
-
-
1.5
-
ZK-15
150
25
-
-
-
-
3.0
-
ZN
HEATER
ZINC HEATING SYSTEM ANODES
ZL-25
500
350
30
25
-
-
1.8
1.7
ZL-50
300
250
40
50
-
-
4.2
4.0
ZL-70
200
150
40
70
-
-
5.4
5.2
ZL-80
200
150
40
80
-
-
7.2
7.0
ZL-90
200
150
50
90
-
-
9.0
8.7
ZL-110
400
300
100
110
-
-
27.0
26.0
ZN
ROD

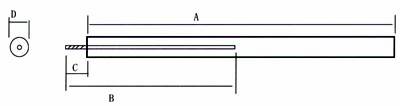

ZINC ROD ANODES
ZR-25
500
25
-
-
-
-
-
1.7
ZR-50
300
50
-
-
-
-
-
4.2
ZR-70
200
70
-
-
-
-
-
5.5
ZR-80
200
80
-
-
-
-
-
7.1
ZR-90
200
90
-
-
-
-
-
9.0
ZR-110
400
110
-
-
-
-
-
27.0
ZN
SOIL
UNDER SOIL ZINC ANODES
ZS-54
610
36
36
-
-
-
5.4
5.2
ZS-80
935
36
36
-
-
-
8.0
7.7
ZS-95
935
40
40
-
-
-
9.3
9.0
ZS-215
1200
50
50
-
-
-
21.5
20.8
