ESEN METAL - ALUMINIUM ANODES

Aluminium Anodes is used in Cathodic Protection of iron and steel constructions that are located in places with Cl ion and sea water, resistivity under 1000 Ohm.cm

Generally the usage field is as follows:

• Hull of ships and ballast tanks

• Harbour and ports

• Platform, buoy and vs.

• Pipe lines under the sea

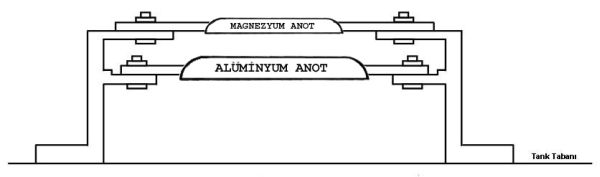

• Unrefined Petroleum Storage Tanks ( Dual Anodes )

Aluminium Anodes's are preferred in long term Cathodic Protection projects because of their current capacity and high efficiency.

Aluminium Anodes's, produced by ESEN METAL, are casted from primer aluminum ingots with 99,8% purity, are analysed chemically and electrochemically according to the international standards

CHEMICALL COMPOSITION

ELEMENT	Al-Zn-In Si	Al-Zn-In Cd	Al-Zn-In Sn	Al-Zn-In Mg-Sn
Zn	2.8 - 6.5	2.5 - 4.5	2.2 - 5.2	2.5 - 4.0
In	0.017 - 0.025	0.018 - 0.050	0.020 - 0.045	0.020 - 0.050
Si	0.08 - 0.20	0.10 % max	0.10 % max	0.10 % max
Cd	-	0.005 - 0.020	-	-
Sn	-	-	0.018 - 0.035	0.025 - 0.075
Mg	-	-	-	0.50 - 1.00
Fe	0.12 % max	0.12 % max	0.12 % max	0.12 % max
Cu	0.006 % max	0.01 % max	0.01 % max	0.01 % max
Other	0.02 % max	0.02 % max	0.02 % max	0.02 % max
Aluminium	Remainder	Remainder	Remainder	Remainder

ELECTROCHEMICALL ATTRIBUTES

Theoretical Current Capacity	2970 A.hour/kg – 3.15 kg/A.year
Efficiency	90 % min
Actual Current Capacity	2675 A.hour/kg – 3.50 kg/A.year
Electrode Potential (Cu/CuSO4)	1100 mV
Potential of Steel Opposite Circuit	250 mV
Density	2.80 g/cm³

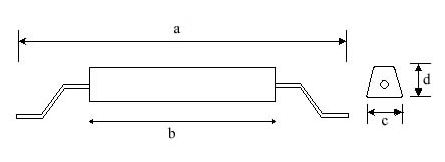

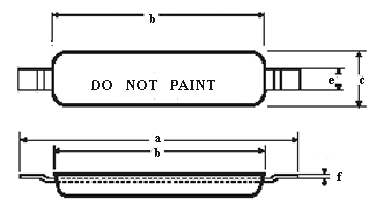

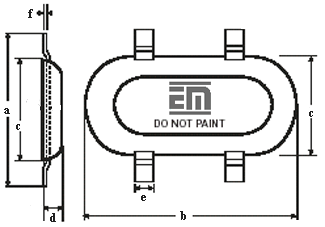

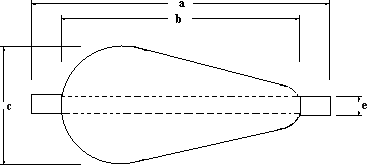

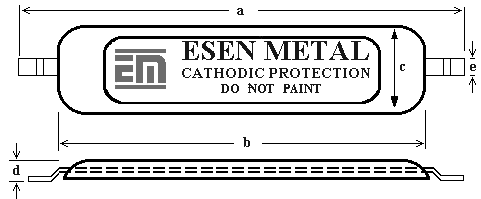

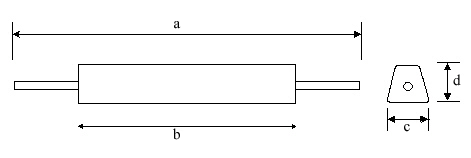

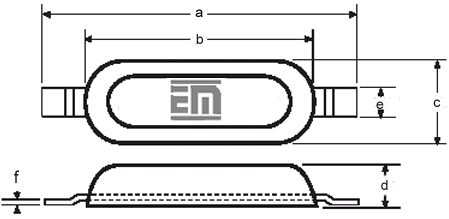

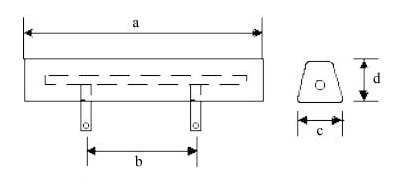

ANODE DIMENSIONS

ANODE TYPE	ANODE SIZES ( mm )						ANODE WEIGHT (kg)
ANODE TYPE	a	b	c	d	e	f	Gross	Net
AL HULL	ALUMINIUM HULL ANODES

A-07	190	140	75	30	20	3	0.7	0.6

A-17	300	240	80	36	25	5	1.7	1.4
A-20	315	255	80	43	25	5	2.0	1.7
A-25	410	350	80	38	25	5	2.5	2.1
A-30	500	440	80	35	25	5	3.0	2.5
A-40	485	425	100	42	25	5	4.0	3.5
A-50	480	420	120	42	30	5	5.0	4.4
A-56	490	430	120	47	30	5	5.6	5.0
A-67	630	530	120	45	30	5	6.7	6.0
A-80	700	600	120	45	40	5	8.0	7.0
A-88	720	620	120	50	40	5	8.8	7.7
A-100	850	750	120	45	40	5	10.0	8.7
A-114	870	770	120	50	40	5	11.4	10.0
A-130	960	840	125	50	40	5	13.0	11.5
A-160	1150	1030	125	50	40	5	16.0	14.2
A-200	1170	1050	125	65	40	5	20.0	18.2

AY-26	360	300	130	30	30	5	2.6	2.2
AY-36	360	300	130	44	30	5	3.6	3.2

AD-12	245	195	70	35	25	5	1.2	1.0
AD-24	360	300	80	40	25	5	2.4	2.0
AD-28	360	300	80	45	25	5	2.8	2.4
AD-35	445	385	80	40	30	5	3.5	3.0
AD-42	450	390	85	45	30	5	4.2	3.8
AD-60	440	380	125	43	40	5	6.0	5.3
AD-65	440	380	125	50	40	5	6.5	5.8
AD-75	880	780	80	43	30	5	7.5	6.5
AD-82	885	785	85	48	30	5	8.2	7.2
AD-102	600	500	130	60	40	5	10.2	9.3
AD-135	630	530	130	80	50	5	13.5	12.3
AD-215	960	840	135	75	40	5	21.5	20.0
AD-310	1195	1075	125	95	40	6	31.0	28.8
AD-330	1265	1145	125	90	40	6	33.0	30.8

AT-50	255	355	165	40	30	5	5.0	4.4
AL BALLAST	ALUMINIUM BALLAST TANK ANODES

ABT-46	1485	935	40	45	8	8	4.6	3.6
ABT-90	1750	1200	50	55	12	12	9.0	7.2

ATR-46	1235	935	40	45	8	8	4.6	3.7
ATR-90	1500	1200	50	55	12	12	9.0	7.5

ATW-46	935	560	40	45	30	5	4.6	3.6
ATW-90	1200	560	50	55	40	5	9.0	7.2
ATW-300	1075	560	125	95	40	6	30.0	28.2
ATW-330	1145	560	125	90	40	6	33.0	31.2
DUAL ANODES	UNREFINED PETROL STORAGE TANK ANODES

DUAL-1	500	400	125	55	40	6	7.5	6.5
DUAL-1	500	300	80	30	40	6	2.0	1.0
